Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm
Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

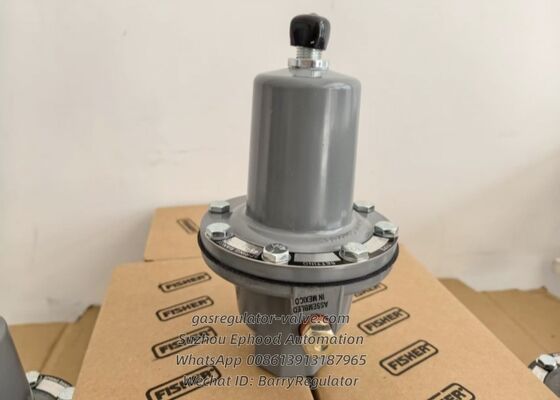

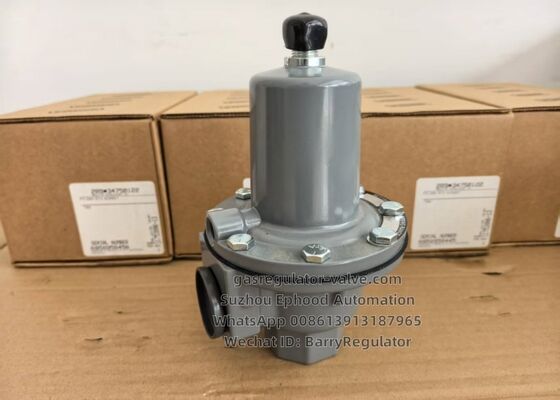

Großes Bild :  Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

Produktdetails:
Herkunftsort: Hergestellt in Mexiko
Markenname: Fisher
Modellnummer: 289HH
Zahlung und Versand AGB:
Min Bestellmenge: 10Sets
Preis: negotiable
Verpackung Informationen: 1 Satz in einem Karton verpackt, jede Kartongröße ist 22 * ​​18 * 18 cm, 2,2 kg pro Stück.
Lieferzeit: 3-8 Arbeitstage
Zahlungsbedingungen: T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 300 Sets jeden Monat
Kontakt

Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

Beschreibung
Name: Druckminderer, Modell 289HH Ende Connetion: 1" NPT
Max Inlet Pressure: 6,9 Bar Frühlings-Strecke: 45–75 psi
Körpermaterial: Aluminium Membran: Nitril (NBR)
Hervorheben:

6.9Bar Max Inlet Pressure Fisher Gas Regulator

,

45-75psi Spring Range Pressure Reducing Regulator

,

Nitrile Diaphragm Relief Valve

Fisher Brand 289HH Model Pressure Gas Regulator Relief Valve
The 289 Series relief valve is a throttling relief valve used downstream of pressure regulators to protect the downstream system from overpressure. A smooth throttling action minimizes pressure surges in the system during emergency operation.
Key Features
  • Available in 1/4, 3/4, 1, or 2 NPT sizes
  • Spring ranges (relief pressure settings) from 5-inches w.c. to 75 psig / 12 mbar to 5.2 bar
  • O-ring seats with Nitrile (NBR) or Neoprene (CR) seating surfaces for tight shutoff
  • Ideal for low-pressure settings due to increased sensitivity from large diaphragm area
Model Specifications
Type 289H: 1 or 2 NPT spring-loaded relief valve for relief pressure settings of 1 to 50 psig / 0.07 to 3.4 bar (four spring ranges in 1 NPT) and 7-inches w.c. to 10 psig / 17 mbar to 0.69 bar (four spring ranges in 2 NPT).
Type 289HH: 1 NPT spring-loaded relief valve for relief pressure settings of 45 to 75 psig / 3.1 to 5.2 bar.
Maximum Allowable Relief (Inlet) Pressure
Model Body Size Spring Range Maximum Allowable Relief (Inlet) Pressure
289HH 1" NPT 45-75 PSI 100 PSI / 6.9 bar
Standard Construction Materials
Valve Body and Spring Case:
  • Types 289A and 289U: Zinc
  • Types 289H (1 NPT), 289HH, and 289L: Aluminum
  • Type 289H (2 NPT): Cast iron body with Aluminum spring case
Diaphragm:
  • Type 289A: Neoprene (CR)
  • Types 289H and 289HH: Nitrile (NBR) or Fluorocarbon (FKM)
  • Types 289L and 289U: Nitrile (NBR)
Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm 0
